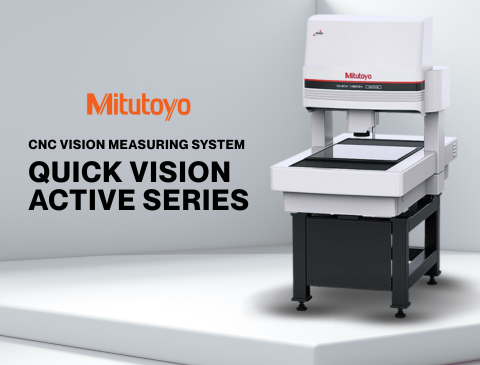

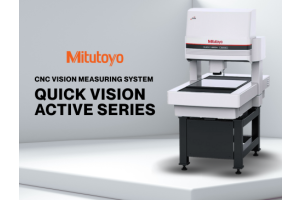

MITUTOYO - CNC Vision Measuring System : QUICK VISION Active Series| JSR GROUP

Controlling the variation of measurement data

Automatic edge detection
The "automatic edge detection" function will provide high reproducibility in measurements regardless of the skill level of the operator.

Image auto focus
Appropriately setting up the "image auto focus" function will enable reliable and high-speed height measurements.

Automatic measurement can be started just with rough positioning

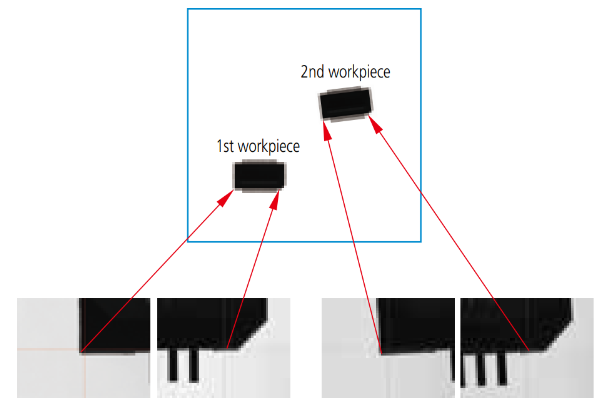

Pattern search
The "pattern search" function automatically recognizes the registered form of the workpiece.

Manual tool
By incorporating "manual tool" measurement into automatic measurement, it is possible to perform measurement with temporary positioning, enabling automatic measurement to be started with the workpiece placed at any position on the stage. Making a positioning jig is not required, which results in cost and man-hour reduction.

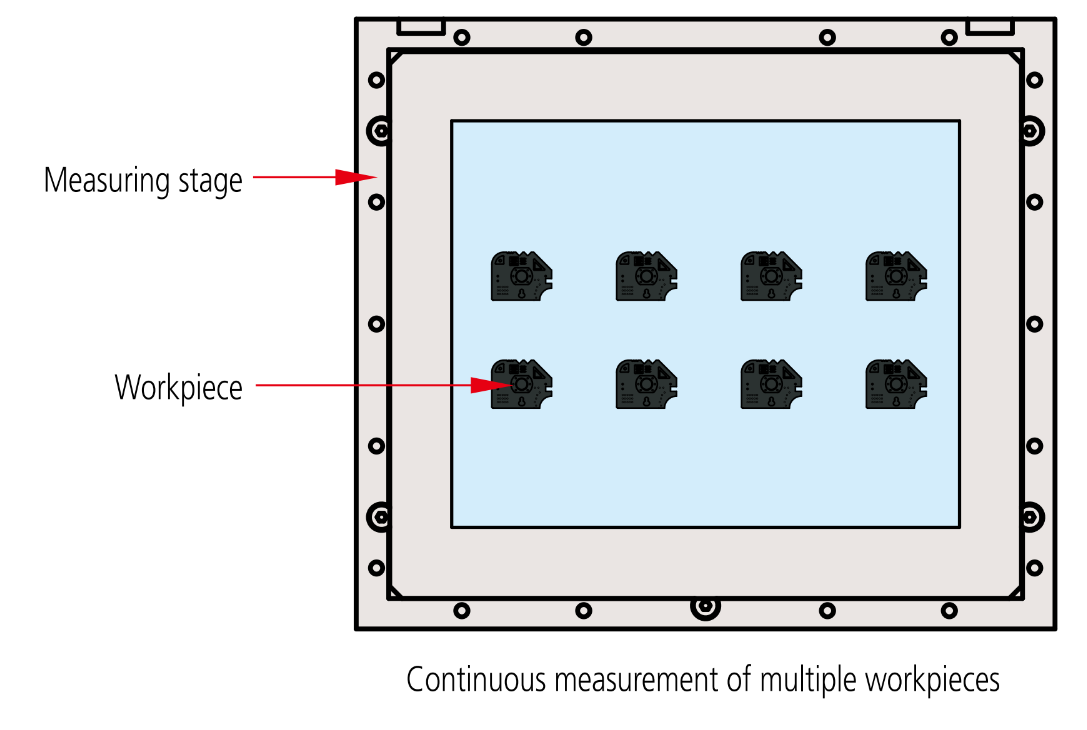

Continuous measurement of multiple workpieces

Step & repeat
The "step&repeat" function will measure a large number of workpieces on the positioning jig in one operation.

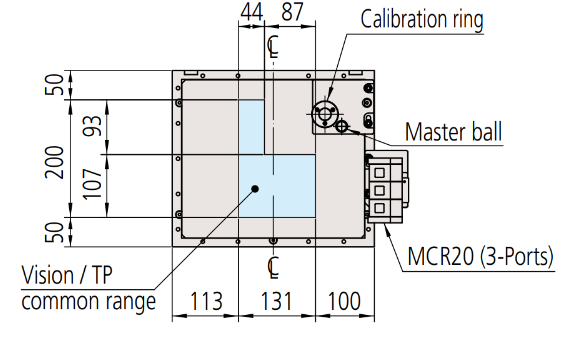

No changeover is required in the continuous measurement of three-dimensional objects

With the Vision Measuring System, the side face of a threedimensional object, or the height of metal/resin moldings can be measured using a touch-probe.

Large stepped features can be measured safely

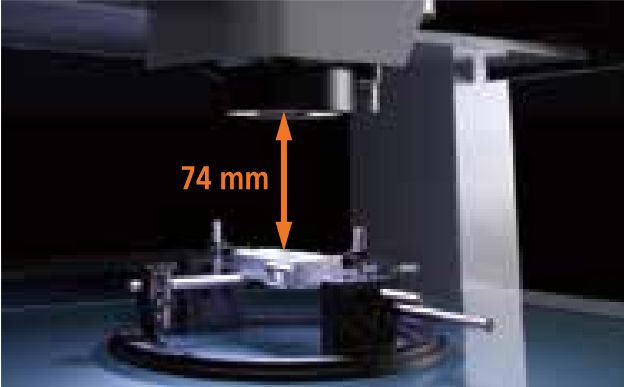

Large working distance
A working distance of 74 mm* practically eliminates the risk of damaging the objective or workpiece by accidental collision.
* Using the 1X objective.

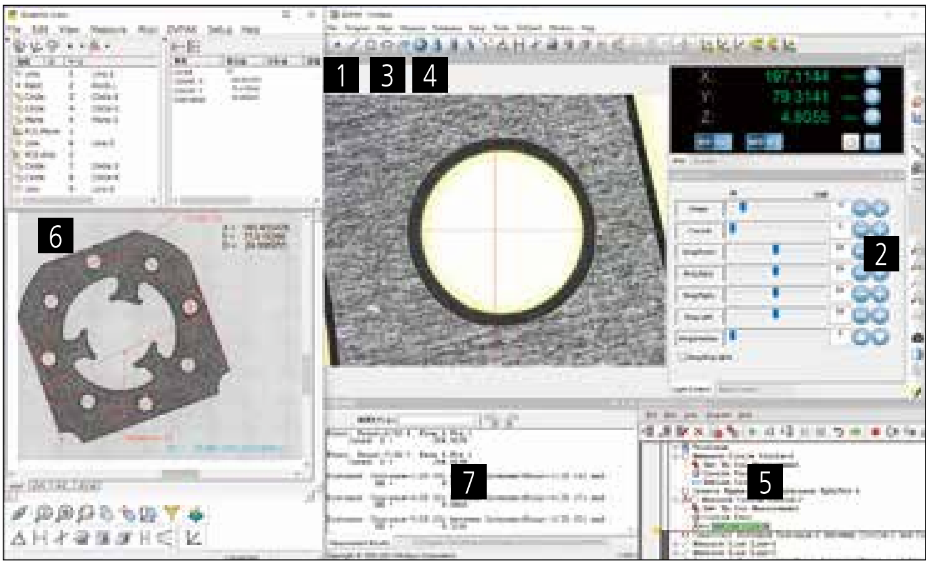

1.Large screen with high-definition color image for less eye fatigue

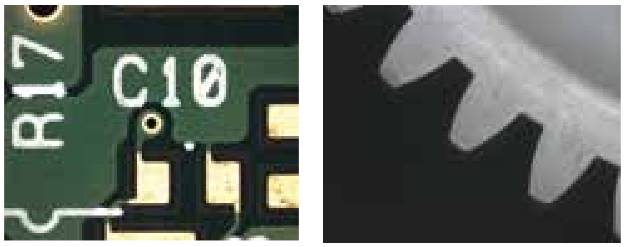

High-definition color camera
Measurement and observation is performed using high-quality and high-definition images, which prevents operator fatigue even over long periods of observation.

2.Edge sharpening means reliable measurement

Matching lighting to the feature

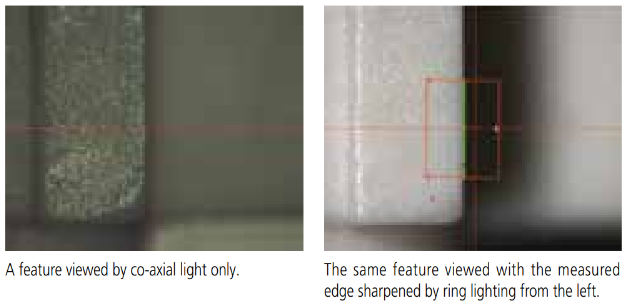

Transmitted, co-axial and 4-quadrant ring lighting is provided so that workpiece illumination can be set independently from the front, rear, right and left directions. This enables more reliable measurement by enhancing the sharpness of the edge of the feature to be measured.

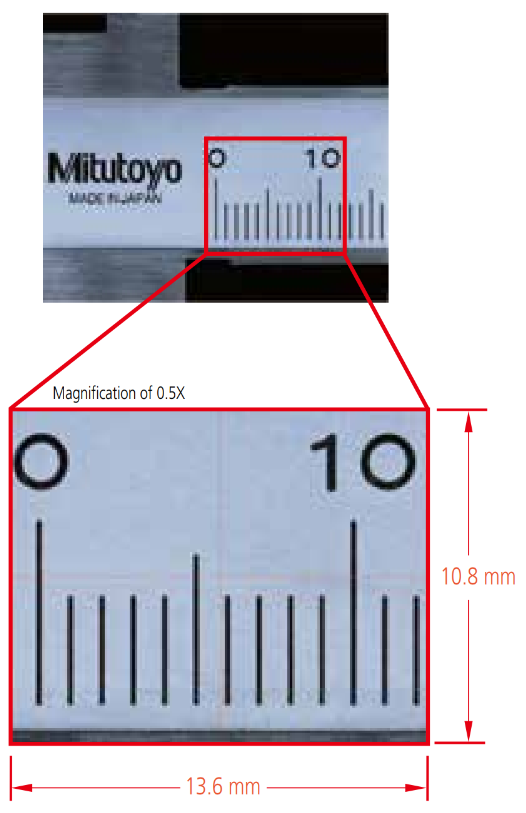

3.Widefield view enables the measuring point to be found easily

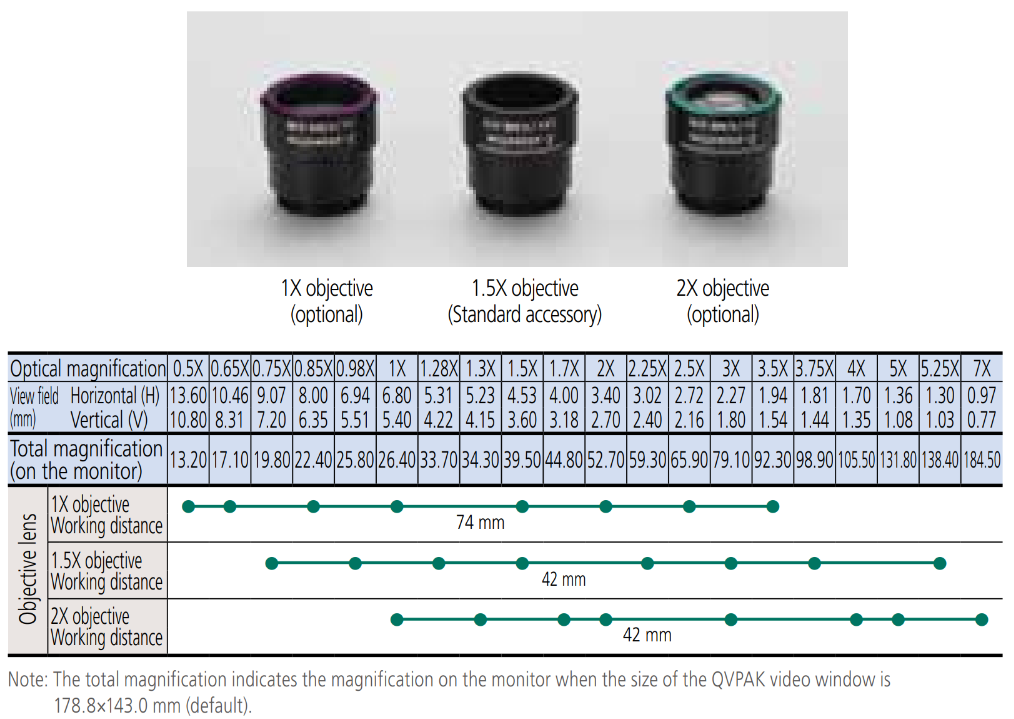

Zoom lens

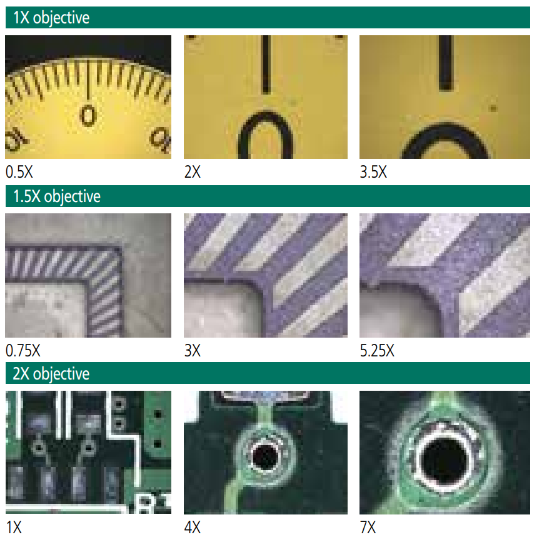

The newly designed zoom lens enables the area of interest to be quickly found, from where the measuring point is easily and quickly identified by zooming to higher magnification.

4.Easy-to-operate for beginners

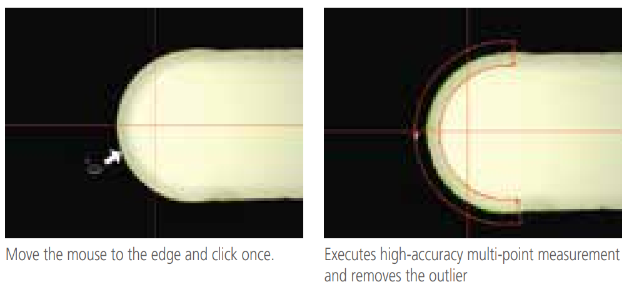

One-click tool
After selecting the element to be measured (circle, line, etc.), just one click on an edge enables high-accuracy measurement regardless of the proficiency level of the operator. The outlier removal function automatically excludes bad data caused by burrs and dust

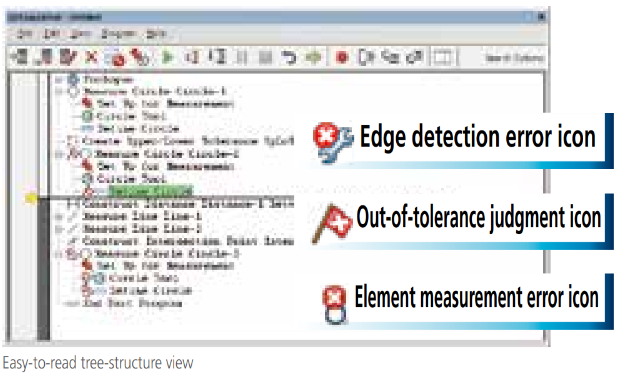

5.Expertise not required Creating and editing an automatic measurement program

QVEasyEditor
A teaching method is adopted in which programs are automatically recorded while measurement is performed. The insertion, revision, addition, and deletion of the part program
can be performed easily using the tree-structure display. Also, execution of only a certain portion of the program after editing can be performed for the purpose of confirmation. Power-useroriented QVBasicEditor is also available as before.

6.Highly sophisticated analysis can be performed simply by selecting a graphic element

QVGraphics

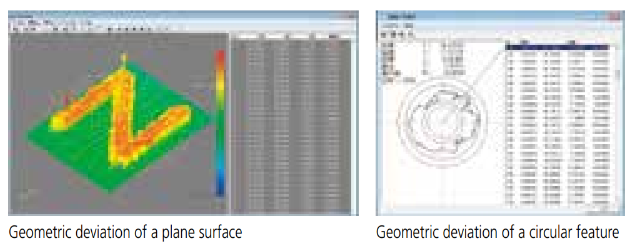

A simple operation, just clicking a measurement graphic element shown in the graphic window enables coordinate creation/change, combination arithmetic operations, and geometric deviation illustration of roundness, flatness, and more.A useful function is automatic creation of a measurement program just by dragging a pitch measurement element.

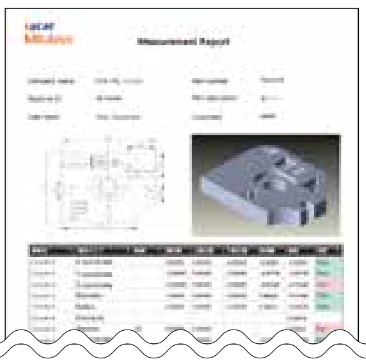

7.Direct output of measurement report

MiCAT Reporter is equipped as standard with a purpose to create reports from the QVPAK measurement results. The software can output data into PDF directly, allowing you to create medical component reports and other reports requiring reliability.

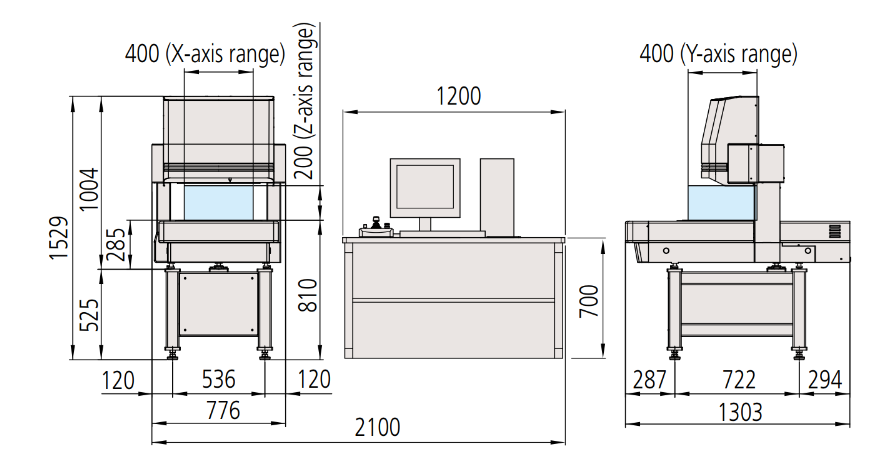

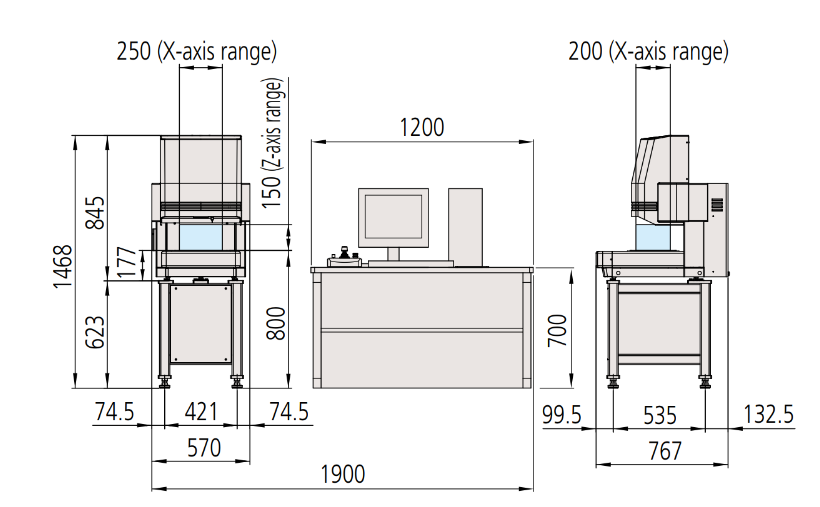

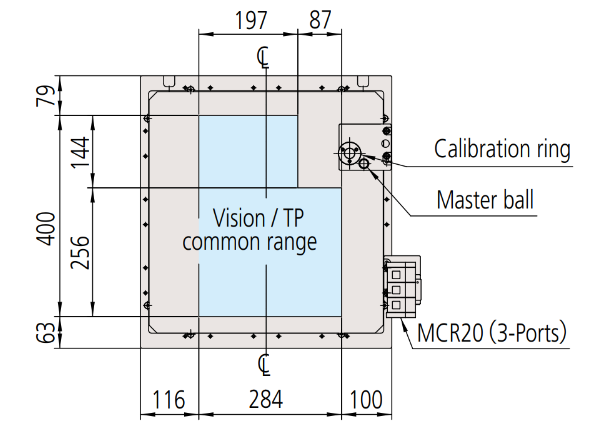

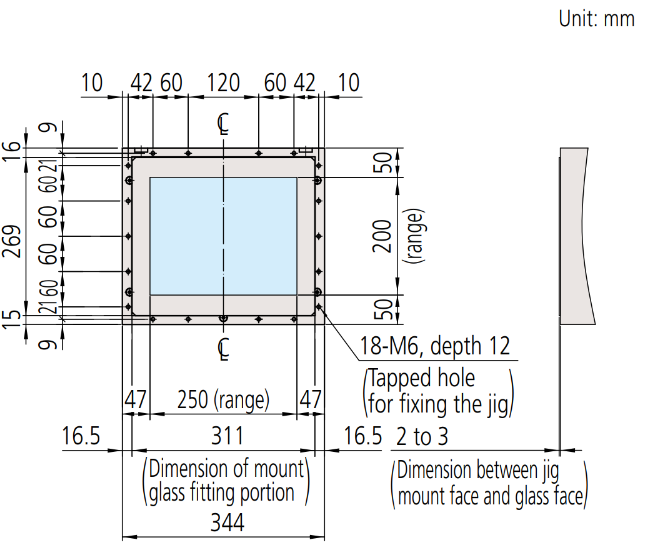

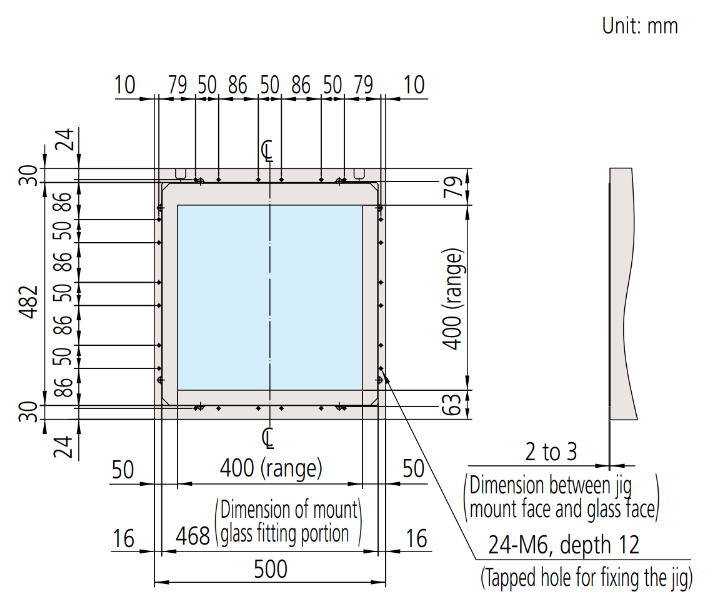

QUICK VISION Active 404
